LED Extrusion Profiles (priced per metre)

Over 100 Variants In Stock - Select Options
Availability: %1 in stock
SKU
LEDSTEXTRUSIONS*
Rating:
88% of 100
Per Metre
As low as £7.70 Incl. VAT As low as £6.94 Incl. VAT

Various types of LED extrusion profiles for use with LED strip tape. Provides a more professional finish to an LED tape installation and improves heat dissipation.

LED Extrusion Profiles (priced per metre) is available to buy in increments of 0.1
  • Features

    Priced per metre but can be cut to size

    Various types of LED extrusion profiles for use with LED strip tape. Provides a more professional finish to an LED tape installation and improves heat dissipation. Particularly useful when mounting LED tapes onto materials that don't conduct heat such as wood or plasterboard.

    Each extrusion profile rail can be used with LED tapes up to 10mm wide. Our wider RGB+WW and RGB+W LED strip tape which is 12mm wide can be used with the wide rail which have internal widths of 20mm. This rail is now available in surface or recessed versions.

    One of the latest edition to this range is our new bendable LED profile. This IP67 rated product can be used indoors or outdoors and bends around curved walls. The LED tape fits sideways into it and provides a dot-less array of light through the diffuser.

    Another edition to the range is the trim-less plaster-in version. This seamless design offers a minimal lighting effect and is suitable for LED tape with a maximum of 10mm wide.

    End caps and mouting clips included in the following products:

    • Surface Slim Rail
    • Corner Rail
    • Bendable Proile
    • Trim-Less Rail

    All other rail end caps and clips are sold separately. Recessed rails do not have clips.

    LED strip tape must be ordered separately.

    General Key Features

    • Priced per metre but can be cut to size
    • Maximum individual length: 2 metres
    • Aluminium with plastic diffuser. The bendable profile is made from PMMA and is IP67
    • Manufacturer: LED Strip Fit
    • Guarantee: 3 years

    Surface Slim Rail Dimensions

    Thin Surface profile rail for LED tape

    Corner Rail Dimensions

    corner profile rail for LED tape

    Recessed Slim Rail Dimensions

    recessed profile rail for LED tape

    Surface 20mm Wide Rail (20mm Internal)

    Wider profile rail for LED tape

    Recessed 20mm Wide Rail (20mm Internal)

    recessed profile rail for wider strip tapes

    Bendable Profile

    bendable LED profile rail

    Trim-Less - Plaster In

    trim-less, plaster-in profile rail

    If you don't want to drill holes into your surface you can use double sided foam tape to secure these profiles into position. Available in 12mm and 19mm wide sizes.



  • Specifications
    Specifications
    Brand LED Strip Fit
    Extrusion Type
    Product Type LED Extrusion Rail
    Sku LEDSTEXTRUSIONS*
  • Reviews
  • Dimensions

    Thin Surface

    • External height: 9mm (including cover)
    • External height: 7mm (without cover)
    • External width: 17.5mm
    • Internal width: 12.2mm
    • Length: 2M (available to cut)

    Corner Rail

    • Height: 17.45mm (including cover).
    • Outer width: 26.26mm
    • Inner width: 11.2mm
    • Length: 2M (available to cut)

    Recessed Rail

    • Internal height: 5.5mm / External: 7mm
    • Width (upper): 24.5mm
    • Width (lower): 17.5mm
    • Width (internal): 12.2mm
    • Length: 2M (available to cut)

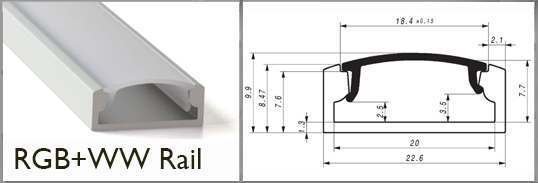

    Wider Rail For RGB+WW

    • External height: 9.9mm including cover & 8.47mm without cover
    • Internal height:7.6mm (2.5mm at lowest point)
    • External width: 22.6mm
    • Internal width: 20mm

    Wider Recessed Rail For RGB+WW

    • External height: 8.47mm without cover
    • Internal height:7.17mm)
    • External width (lower): 22.6mm
    • External width (upper): 29.6mm
    • Internal width: 20mm
    • Length: 2M (available to cut)

    Bendable Profile Rail

    • External height: 18.5mm
    • External width: 10mm
    • Internal width: 10mm (tape side mounts inside the profile)
    • Reel length: 5M (available to cut & priced per metre)

    Trimless (plaster-in) Profile Rail

    • External height: 14mm
    • External width: 13mm for rail (53mm with plaster-in section)
    • Internal width: 10.5mm (suitable for 10mm wide LED tapes)
    • Reel length: 2M (available to cut)

  • Product Codes
    • LEDSTAPTHIN - Thin 7mm version
    • LEDSTAPCORN - Corner profile rail
    • RSL7-1 - Recessed mounted
    • SLW8-1+SLW-M1 - Wider surface rail (20mm internal) for RGB+WW
    • RSLW8-2+SLW-M1 -Wider recessed rail (20mm internal) for RGB+WW
    • FLEXI-RAIL - Bendable LED profile rail
    • TRIM-RAIL - Trimless -Plaster-In rail
