Dimmable LED Module With Junction Box Integral EvoLight

Integral LED
Rating:
100% of 100
2 Reviews
SKU
ILMDC00-*
Over 100 Variants In Stock - Select Options
View Stock Locations
Availability: %1 in stock
Special Price Incl. VAT
Per Each

Dimmable LED Module With Junction Box Integral EvoLight for use with the Integral EvoFire+ series.

Free Delivery On Orders Over £60
30-day Returns
Shop and Check Out Securely

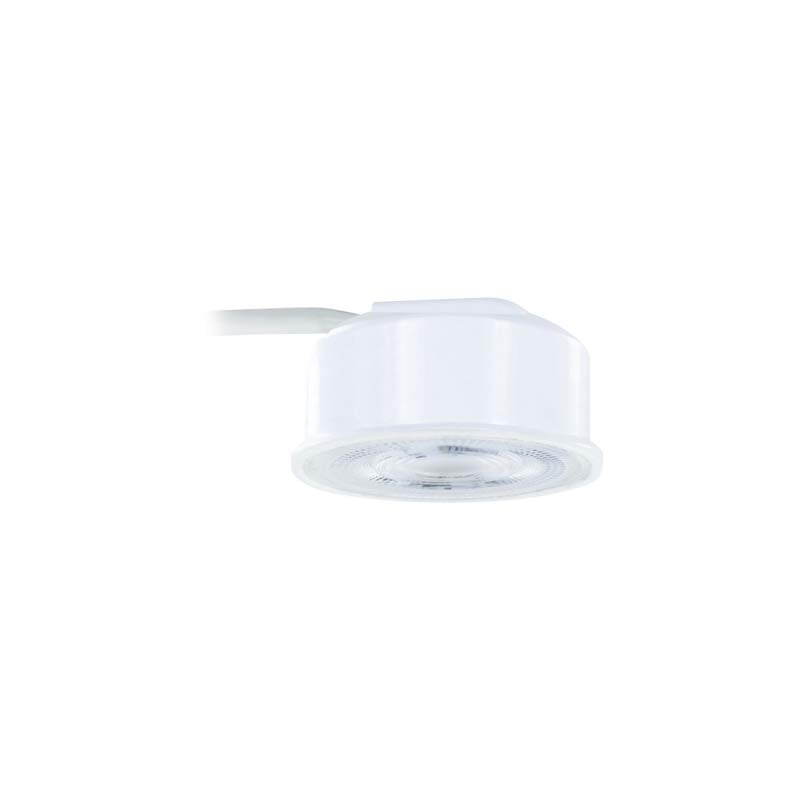

main product photo
  • Features

    Dimmable LED Module With Junction Box Integral EvoLight for use with the Integral EvoFire+ series. Or can be used as a retrofit solution for converting existing MR16 LEDs.

    Key Features

    • Available in colour temperature:
      - Extra Warm White 2700K = 410 Lumens
      - Cool White 4000K = 420 Lumens
    • Finish: Matt white
    • CRI: 80
    • Wattage: 3.8W (equivalent 50W)
    • Driver included: Yes
    • Cap type: Integrated LED
    • Beam angle: 36 degree
    • Dimmable: Yes
    • IP rating: IP20
    • LED lifetime: 15,000 hours
    • LED type: SMD
    • Frequency range: 50Hz
    • Power factor: 0.5
    • Voltage: 220-240V AC
    • Manufacturer: Integral Lighting
    • Guarantee: 2 years
  • Specifications & Dimensions
    Specifications
    Beam Angle
    Specifications

    Every light source from an LED to a simple wax candle has a beam angle. A beam angle is a measurement of how the light is distributed. GU10 LEDs and recessed downlights have a fairly narrow beam of around 40 degrees, anything within 5 degrees is classed as a medium beam.

    A wax candle or traditional light bulb would have a beam angle of 360 degrees as the light shines all the way around but is less intense.

    Combing brighter downlights with wider 60 degree beams allows you to space them out further, reducing the total amount of lights needed.

    More information about beam angles.

    		 36 Degrees
    Brand
    Specifications
    		Integral LED
    CRI
    Specifications

    CRI stands for Colour Rendering Index. It is a measurement of how well a light source can render the true colour of an object compared to natural light.

    Rated out of 100, with an open flame or sunlight being a perfect 100. A light with 90 CRI and above would be classed as having high CRI, while 80 CRI is the standard for LEDs.

    Read more about high CRI.

    		 80 Ra
    Cap Type Integrated LED
    Colour Temperature
    Specifications

    Colour temperature is a measurement of appearance. Measured in Kelvins, the lower the rating, the warmer the light appears. Choosing the right temperature can have a dramatic effect on a room.

    2700K - Extra Warm White

    Similar to a traditional incandescent light bulb or halogen. It has a more orange and warmer tone, with a ‘soft white’ appearance. Ideal for living rooms.

    3000K - Warm White

    Clearer, but still quite warm. This is the ‘new norm’ for general lighting and is the most popular option. If you’re unsure I’d recommend trying this one.

    4000K - Cool White

    Clearer, whiter and crisp; used in commercial locations including supermarkets. Cool white appears brighter than warm white as the LED is covered in less phosphor. It can make a room appear cold and clinical but used correctly (white walls etc) it can make a room appear cleaner and modern.

    More information about colour temperatures.
    Dimensions Located Below Specifications Table
    Dimmable Yes
    Energy Rating F
    Finish Matt White
    Life Expectancy
    Specifications
    		15,000 Hours
    Lighting Technology LED
    Lumens 410 Lumens
    Product Type
    Specifications
    		LED Module
    Series
    Specifications

    The sub-brand of a manufacturer that groups collections of products together.

    		 Integral EvoLight
    Sku ILMDC00-*
    Voltage
    Specifications

    AC standards for alternating current and DC standards for direct current.

    Mains voltage is 230V AC and has a tolerance of 10%, some products are 220V or 240V AC which means they can be classed as mains voltage.

    DC voltages usually require an LED driver to convert the mains voltage AC into low voltage DC. Popular DC voltages are 12V or 24V DC.

    		 230V AC
    Warranty
    Specifications
    		2 Years
    Wattage
    Specifications
    		3.8 W
    • Length: 29mm
    • Width: 50mm
  • 2 Reviews Rating: 100%
  • Product Questions & Answers

    Product Questions & Answers

    Set Descending Direction
    I have a circuit with 8 units of MR16 with transformers.
    Can I just replace half of them with these units as a test first? e.g. 4 evofires and 4 MR16s
    Question by: Julius Ang on 10 Feb 2023, 09:46
    One issue you might have is if you've got them on a dimmer switch. Your mixing low voltage with mains voltage.

    I'd recommend just replacing all 8 at once.
    Answer by: Chris Horridge (Admin) on 11 Feb 2023, 06:03

    1 Item

    Show per page
  • Data Sheets & Brochures
    Product Attachments
    Data Sheet Data Sheet.pdf
    Brand Brochure View or download brand brochure
  • Product Codes
    • ILMDC003 - 2700K
    • ILMDE004 - 4000K
