Mains Dimmable Constant Voltage LED Drivers 150W

SKU
ELED-150P-**T
5 Variants In Stock - Select Options
View Stock Locations
Availability: %1 in stock
Special Price Incl. VAT
Per Each

Mains dimmable 150W LED drivers that are capable of medium size LED loads. Rated at IP66, they're constructed from a robust aluminium casing and are built to last.

Free Delivery On Orders Over £60
30-day Returns
Shop and Check Out Securely

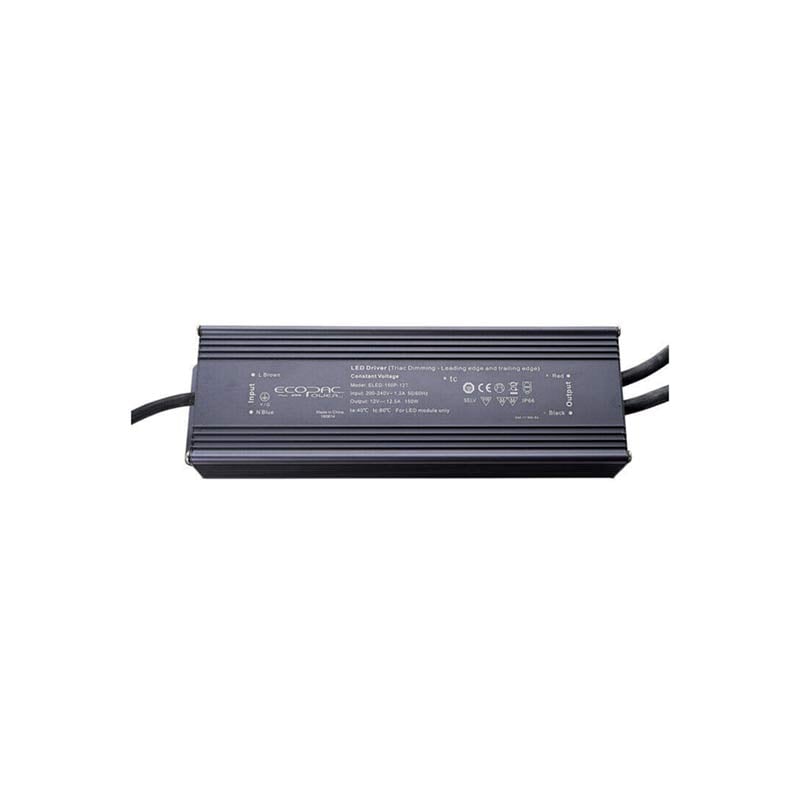

main product photo
  • Features

    Mains dimmable 150W LED drivers that are capable of medium size LED loads. Rated at IP66, they're constructed from a robust aluminium casing and are built to last.

    Compatible with leading edge and trailing edge dimmers.

    Key Features

    • Available in output voltage options:
      - 12V DC
      - 24V DC
    • Built-in active PFC function
    • Efficiency up to 87%
    • Full protection aluminium housing
    • Cooling by free air convection
    • Suitable for LED lighting and moving signs
    • Dimmable: Leading & Trailing edge dimmable
    • Wattage: 150W
    • IP rating: IP66
    • Protections: Short circuit/ Over Loading/ Over Current
    • Frequency range: 47-63Hz
    • Output current: 12.5A = 12V DC / 6.25A = 24V DC
    • Input voltage: 200-240VAC
    • Manufacturer: Ecopac
    • Guarantee: 3 years
  • Specifications & Dimensions
    Specifications
    Brand Ecopac Power
    Dimensions Located Below Specifications Table
    Dimmable Yes
    IP Rating
    Specifications

    IP (International or Ingress Protection) defines a products level of resistance to dust and moisture. The first digit is for dust and the second digit is for moisture.

    Anything higher than IP44 can be used in bathroom zones 1 and 2. IP44 is splash proof and resistance to particles larger than 1mm.

    An IP65 rating offers a higher resistance to moisture and is generally used outdoors. IP65 is usually specified for bathroom downlights but according to the Building Regulations, IP44 provides adequate protection.

    An IP68 rating is fully water resistant and can be submersed in water, up to 1M in depth.

    		 IP66
    Input Voltage 230V AC
    Operation Mode
    Specifications

    Constant voltage LED drivers have a 12V or 24V DC output voltage. They are mainly used to power LED tape and smaller LED lights.

    Constant current LED drivers have a 350mA or 700mA output. They are used to power more specialised LED fittings that require a precise current.

    Many other output voltages and currents are avaialble but these are the most popular examples.

    		 Constant Voltage
    Output Voltage
    Specifications

    LED drivers have an input and output voltage. The input voltage is usually mains voltage (230V AC) and the output voltage is usually 12V or 24V DC.

    Constant voltage LED drivers are regulalry used with LED tape and have a constant, regulated voltage.
    Product Type LED Driver
    Sku ELED-150P-**T
    Voltage
    Specifications

    AC standards for alternating current and DC standards for direct current.

    Mains voltage is 230V AC and has a tolerance of 10%, some products are 220V or 240V AC which means they can be classed as mains voltage.

    DC voltages usually require an LED driver to convert the mains voltage AC into low voltage DC. Popular DC voltages are 12V or 24V DC.

    		 230V AC
    Warranty
    Specifications

    The minimum guarantee period of this product.

    		 3 Years
    Wattage
    Specifications

    Wattage is the unit used to measure the rate of energy transfer or power consumption in an electrical circuit or device.

    		 150 W
  • Reviews
  • Product Questions & Answers

    Product Questions & Answers

    No questions yet. Be the first to ask the question!
  • Data Sheets & Brochures
    Product Attachments
    Data Sheet ELED-150P-Datasheet.pdf
  • Product Codes
    • ELED-150P-12T - 12V DC
    • ELED-150P-24T - 24V DC
