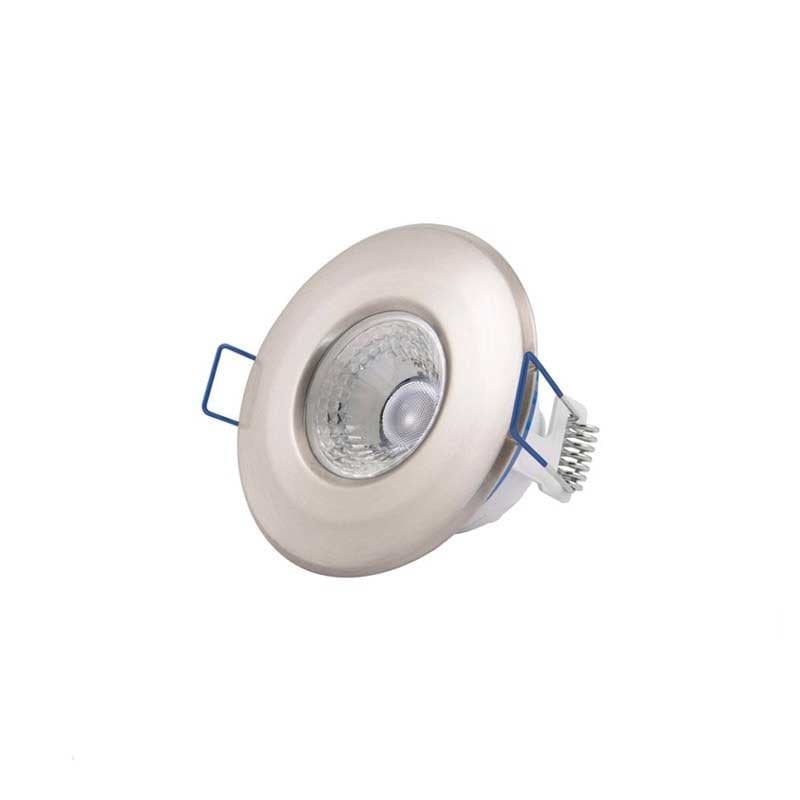

Small in size but bright in lumens, Click Nano downlights have a light output of 400 to 450 lumens and available in fixed IP65 and adjustable IP54 versions.
-
Features
Small in size but bright in lumens, Nano downlights have a light output of 400 to 450 lumens. Offering a low energy alternative to a 50 watt halogen with a mere 4.8 watt energy consumption. Available in fixed IP65 and adjustable IP54 versions, the Click Nano is dimmable and fire rated as standard.
Because the adjustable version is also IP rated it can be fitted inside bathrooms which is great if your looking for a competitively priced adjustable bathroom downlight. This range of downlights really does ticks all the boxes, the only drawback to it is that its not insulation coverable, but fear not because the new insulation cover guard allows you to quickly convert it into an insulation coverable downlight if you need to.
Ideal for use in shallow ceiling voids with depths of 50mm (fixed) and 54mm (adjustable). Part of the Click Inceptor downlights they are also supplied with a Click Flow Connector system which speeds up installation times and makes wiring much easier.
Key Features
- Wattage: 4.8W
- Colour temperatures: 2700K extra warm white and 4000K cool white
- Lumens:
- 2700K = 400 lumens
- 4000K = 450 lumens - Lumens efficacy:
- 71 lms/W = 2700K & 81 lms/W = 4000K
- Beam angle: 40 degrees
- Available in fixed or adjustable versions
- CRI (Colour Rending Index): 80
- Finishes: White, Polished chrome and Satin chrome
- Dimmable as standard
- Fire Rated
- Not insulation coverable but the Click ISC1020 (shown in the image below) can be added to make it insulation coverable
- Available Downlight Versions: Fixed IP65 and IP54 Adjustable
- IP ratings: Fixed version is IP65 an the adjustable version is IP54. Both suitable for bathroom zones 1 and 2
- Connection: Pre-wired Flow Connector that includes both parts you need.
- Power Factor: 0.8
- Switching Cycles: 20,000
- Voltage: Mains voltage 220-240V
- Emergency pack also available
- Life expectancy: 25,000 hours
- Material: Steel Aluminium ABS Nylon & Polycarbonate
- Life expectancy: 25,000 hours
- Guarantee: 2 Years
- Manufacturer: Ovia Lighting / Click Scolmore
-
Specifications & Dimensions
Specifications Beam Angle SpecificationsEvery light source from an LED to a simple wax candle has a beam angle. A beam angle is a measurement of how the light is distributed. GU10 LEDs and recessed downlights have a fairly narrow beam of around 40 degrees, anything within 5 degrees is classed as a medium beam.
A wax candle or traditional light bulb would have a beam angle of 360 degrees as the light shines all the way around but is less intense.
Combing brighter downlights with wider 60 degree beams allows you to space them out further, reducing the total amount of lights needed.
More information about beam angles.
40 Degrees Brand SpecificationsOvia Lighting CRI SpecificationsCRI stands for Colour Rendering Index. It is a measurement of how well a light source can render the true colour of an object compared to natural light.
Rated out of 100, with an open flame or sunlight being a perfect 100. A light with 90 CRI and above would be classed as having high CRI, while 80 CRI is the standard for LEDs.
80 Ra Cap Type Integrated LED Colour Temperature SpecificationsColour temperature is a measurement of appearance. Measured in Kelvins, the lower the rating, the warmer the light appears. Choosing the right temperature can have a dramatic effect on a room.
2700K - Extra Warm White
Similar to a traditional incandescent light bulb or halogen. It has a more orange and warmer tone, with a ‘soft white’ appearance. Ideal for living rooms.
3000K - Warm White
Clearer, but still quite warm. This is the ‘new norm’ for general lighting and is the most popular option. If you’re unsure I’d recommend trying this one.
4000K - Cool White
Clearer, whiter and crisp; used in commercial locations including supermarkets. Cool white appears brighter than warm white as the LED is covered in less phosphor. It can make a room appear cold and clinical but used correctly (white walls etc) it can make a room appear cleaner and modern.
More information about colour temperatures.
Dimensions Located Below Specifications Table Dimmable Yes Downlight Type SpecificationsRecessed downlights are available in different types such as fixed, adjustable and bathroom (IP65).
Fixed downlights shine the light directly downards. Adjustable downlights allow you to redirect the angle of light onto a specific object or area.
IP65 downlights are water resistant and suitable for use in bathroom zones 1 & 2. Most integrated LED downlights are IP65 rated as standard. This means they can be used anywhere including kitchens and living rooms etc.
Fixed GU10 downlights don't offer any resistance to water, their IP rating is usually IP20. They have no seal and cost less.
Finish Fire Rated Yes IP Rating SpecificationsIP (International or Ingress Protection) defines a products level of resistance to dust and moisture. The first digit is for dust and the second digit is for moisture.
Anything higher than IP44 can be used in bathroom zones 1 and 2. IP44 is splash proof and resistance to particles larger than 1mm.
An IP65 rating offers a higher resistance to moisture and is generally used outdoors. IP65 is usually specified for bathroom downlights but according to the Building Regulations, IP44 provides adequate protection.
An IP68 rating is fully water resistant and can be submersed in water, up to 1M in depth.
IP65 Incandescent Equivalent Specifications50 W Insulation Coverable SpecificationsIn order to achieve Part L Compliance (energy efficiency) you shouldn't cut around thermal insulation. If you do this your home or building won't be energy efficient as valuable heat will escape through the hole of the downlight.
A downlight can act like a chimney and draw out warm, rising air from a room, up into the cold space above. The effect is increased in upper floors containing lofts.
Insulation coverable downlights allow you to place thermal insulation directly on top of them.More information about insulation coverable downlights.No Life Expectancy Specifications25,000 Hours Lighting Technology LED Lumens 400 Lumens Product Type SpecificationsLED Downlight Series SpecificationsThe sub-brand of a manufacturer that groups collections of products together.
Ovia Inceptor Nano Sku OV5400* Voltage SpecificationsAC standards for alternating current and DC standards for direct current.
Mains voltage is 230V AC and has a tolerance of 10%, some products are 220V or 240V AC which means they can be classed as mains voltage.
DC voltages usually require an LED driver to convert the mains voltage AC into low voltage DC. Popular DC voltages are 12V or 24V DC.
230V AC Warranty Specifications2 Years Wattage Specifications4.8 W Fixed
- Cut out size: 60mm
- Height / depth: 50mm
- Diameter: 80mm
- Suitable for ceiling thicknesses: 5-40mm
- Minimum ceiling void depth: 45mm
Adjustable
- Cut Out: 75mm
- Height / depth: 54mm
- Diameter: 90mm
- Suitable for ceiling thicknesses: 5-40mm
- Minimum ceiling void depth: 54mm
- 20 degree Adjustable angle
-
53 Reviews
-
Ask a Product Question
Ask a Product Question
Does the connector have a loop in and out connectionQuestion by: Ben on 23 Jun 2022, 21:41Yes, it does.Answer by: Chris Horridge (Admin) on 24 Jun 2022, 09:32We currently have the Inceptor micro which has been discontinued. Would this work as a replacement for this?Question by: Amy Phillips on 13 Nov 2022, 17:13Yes, the Nano is the recommended alternative for the Inceptor Micro.Answer by: Chris Horridge (Admin) on 14 Nov 2022, 08:43Thanks so much for your response. Is the connector for the micro and nano the same?Question by: Amy Phillips on 14 Nov 2022, 09:18Yes, both use the same Click Flow connector. You should be able to disconnect the Micro and connect the Nano.Answer by: Chris Horridge (Admin) on 14 Nov 2022, 10:37 -
Product Codes
Fixed IP65
2700K
- OV5700WH5WD - White
- OV5700SC5WD - Satin chrome
- OV5700CH5WD - Polished chrome
4000K
- OV5700WH5CD - White
- OV5700SC5CD - Satin chrome
- OV5700CH5CD - Polished chrome
Adjustable IP54
2700K
- OV5705WH5WD - White
- OV5705SC5WD - Satin chrome
- OV5705CH5WD - Polished chrome
4000K
- OV5705WH5CD - White
- OV5405SC5CD - Satin chrome
- OV5407CH5CD - Polished chrome
