Triac Dimmable LED Drivers 25-200W PowerLED

Rating:
86% of 100
SKU
UVC**TD
38 Variants In Stock - Select Options
View Stock Locations
Availability: %1 in stock
Special Price Incl. VAT
Per Each

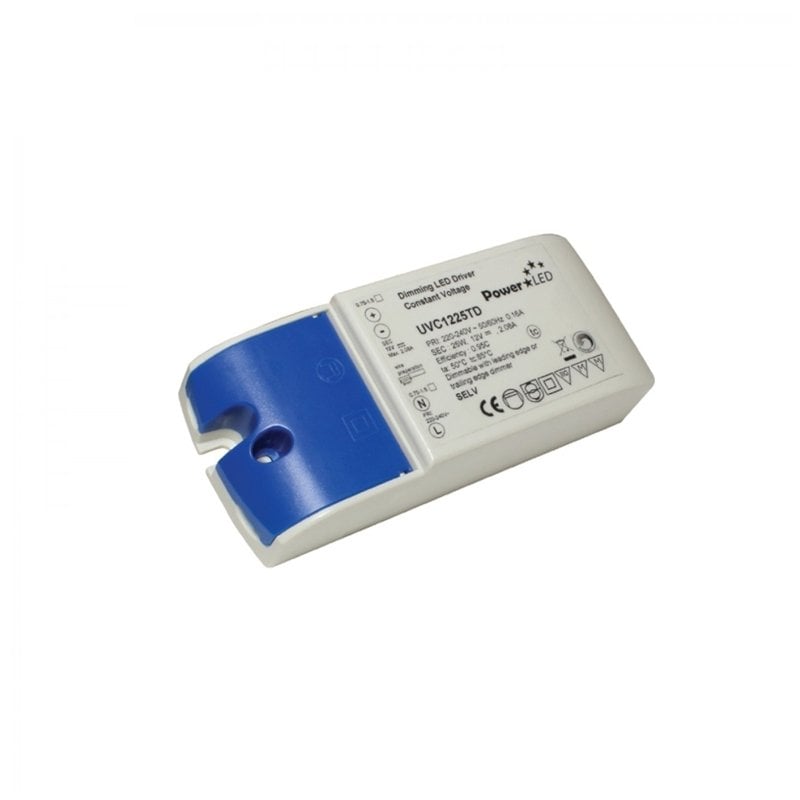

PowerLED Triac dimmable LED drivers that can be dimmed using a mains dimmer switch.

  • Features

    PowerLED Triac dimmable LED drivers that can be dimmed using a mains dimmer switch. The dimmer switch must be LED compatible such as Varilight V-Pro (up to 120W) or Varilight V-Com (up to 600W). Suitable for dimming LED tape and many other LED lights that have a constant voltage input.

    Our mains dimmable LED drivers are available in 4 wattage types of 25W, 50W, 100W or 200W. With each one available in 12V DC or 24V DC outputs.

    Triac dimmable drivers are easy to wire (see wiring diagram at the bottom of the page) and offer a smooth, flicker free dimming performance.

    Key Features

    • Wattage options: 25W / 50W / 100W / 200W
    • We also have a lower wattage version with a 0.75W minimum load available here.
    • Input voltage: 220 ~ 240V AC
    • Output voltage: 12V or 24V DC versions available. Please choose from the product options.
    • Mains Dimmable / TRIAC dimmable - compatible with leading and trailing edge dimmer switches
    • Also available in non dimmable here
    • IP Rating: IP20 not water resistant (200W - IP67 water and dust resistant)
    • Operating temperature: -20 ~ +50 degree C
    • Storage Temperature: -40 ~ +70 degree C
    • Fully isolated
    • Short circuit over current and over voltage protection up to 80% efficient
    • Fire resistant plastic cover
    • RoHS and EMC compliant
    • Also compatible with Lightwave RF dimmer switches to a maximum loading of 100.8W (per switch) which equates to 7 metres of 14.4W/Metre LED tape
    • Manufacturer: PowerLED
    • Guarantee: 2 years

  • Specifications & Dimensions
    Specifications
    Brand
    Specifications
    PowerLED
    Dimensions Located Below Specifications Table
    Dimmable Yes
    Operation Mode
    Specifications
    Constant Voltage
    Output Voltage
    Specifications
    Product Type
    Specifications
    LED Driver
    Sku UVC**TD
    Warranty
    Specifications
    2 Years
    Wattage
    Specifications

    25W

    • Length: 122mm
    • Width: 52mm
    • Depth: 30mm

    50W

    • Length: 184mm
    • Width: 61mm
    • Depth: 32mm

    100W

    • Length: 210mm
    • Width: 67mm
    • Depth: 34mm

    200W

    • Length: 249mm
    • Width: 72mm
    • Depth: 40mm

    • 14 Reviews Rating: 86%
    • Product Questions & Answers 3

      Product Questions & Answers

      Set Descending Direction
      I am using a Lutron Grafic Eye 3104 to the 4 zones in my kitchen. Is this the correct driver to replace the 12v halogen transformers so that I can use LEDs

      Question by: John Smith on 5 Apr 2023, 18:27
      These drivers have a DC output, whereas most MR16 LEDs run off AC. You'd probably be best with the Varilight YT50LZ.
      Answer by: Mathew Smith (Admin) on 6 Apr 2023, 09:06
      One feature of this is "Mains Dimmable / TRIAC dimmable - compatible with leading and trailing edge dimmer switches". Does this mean it will work with my old 1970s leading edge dimmer switch?
      Question by: Malcolm on 9 Jan 2024, 22:41
      Its very unlikely, you're best of changing it to an LED compatible one. It will most likely flicker.

      You can just change the dimmer module and keep your plate, or replace the entire dimmer. Here's the module:

      https://www.downlights.co.uk/varilight-led-dimmer-modules.html

      Dimmers here:
      https://www.downlights.co.uk/varilight-led-dimmer-switches.html
      Answer by: Chris Horridge (Admin) on 10 Jan 2024, 07:45
      Hello,
      What Leading Edge LED Dimmer Module should be used with this 200W, 24V transformer please?
      Question by: Mike on 19 Feb 2024, 20:11
      It would be the V-Com, this is 220W:
      https://www.downlights.co.uk/varilight-v-com-dimmer-switch.html

      There's also a 180W version and some higher wattages.

      Or the complete dimmer:
      https://www.downlights.co.uk/varilight-v-com-dimmer-switch.html
      Answer by: Chris Horridge (Admin) on 20 Feb 2024, 08:00

      3 Item(s)

      Show per page
    • Data Sheets & Brochures
      Product Attachments
      Data Sheet for 25W Driver Data Sheet for 25W Driver
      Data Sheet for 50W Driver Data Sheet for 50W Driver
      Data Sheet for 100W Driver Data Sheet for 100W Driver
      Data Sheet for 200W Driver Data Sheet for 200W Driver
    • Product Codes

      25W

      • UVC1225TD - 12V DC
      • UVC2425TD - 24V DC

      50W

      • UVC1250TD -12V DC
      • UVC2450TD -24V DC

      100W

      • UVC12100TD - 12V DC
      • UVC24100TD - 24V DC

      200W

      • UVC12200ETD - 12V DC
      • UVC24200ETD - 24V DC
